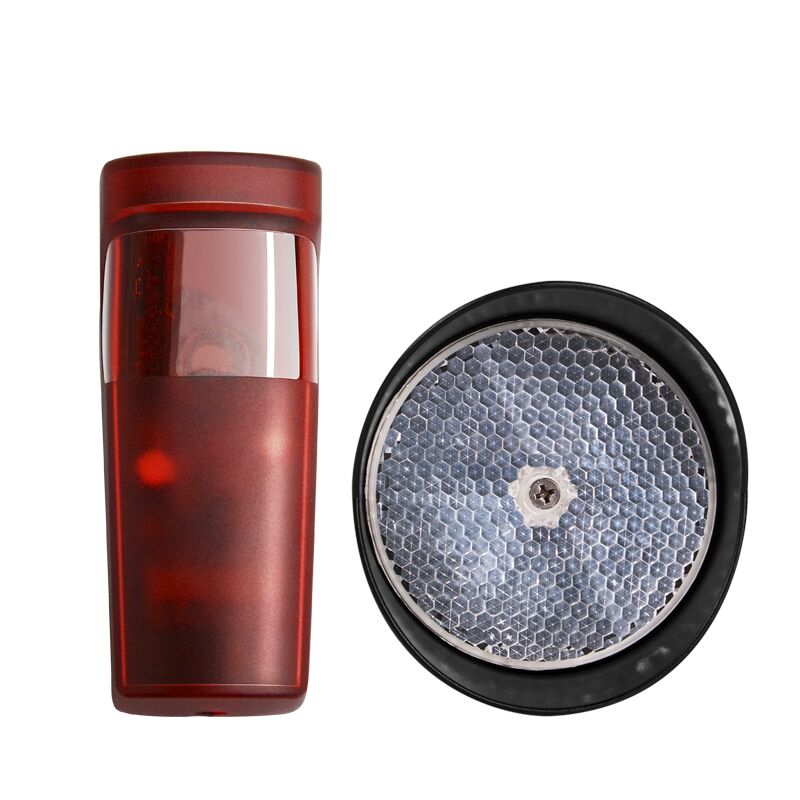

Reflective Infrared Beam AN900-R10

 Tip: Click on image to enlarge

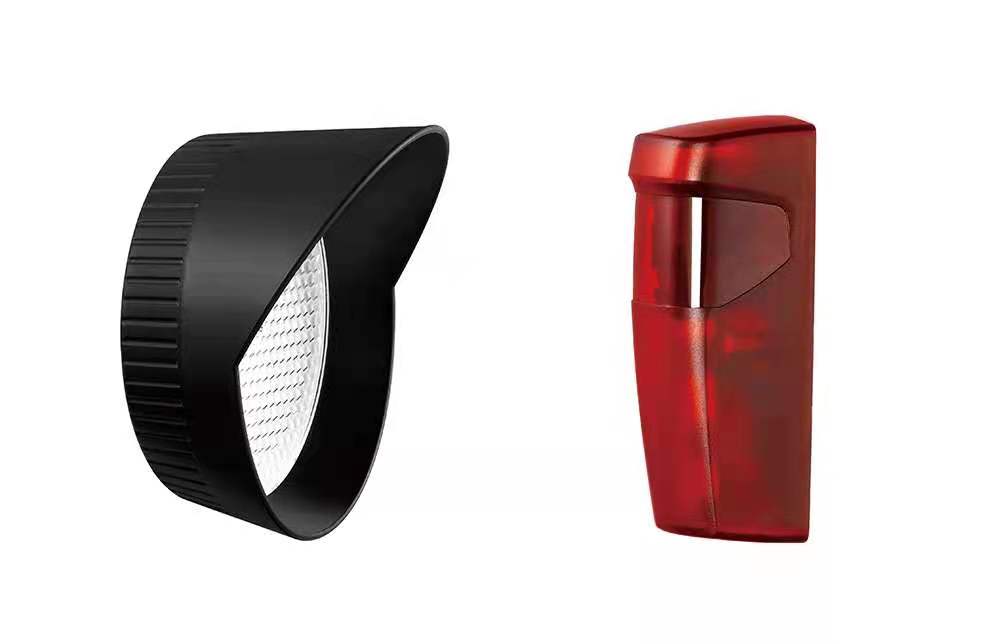

Product Application

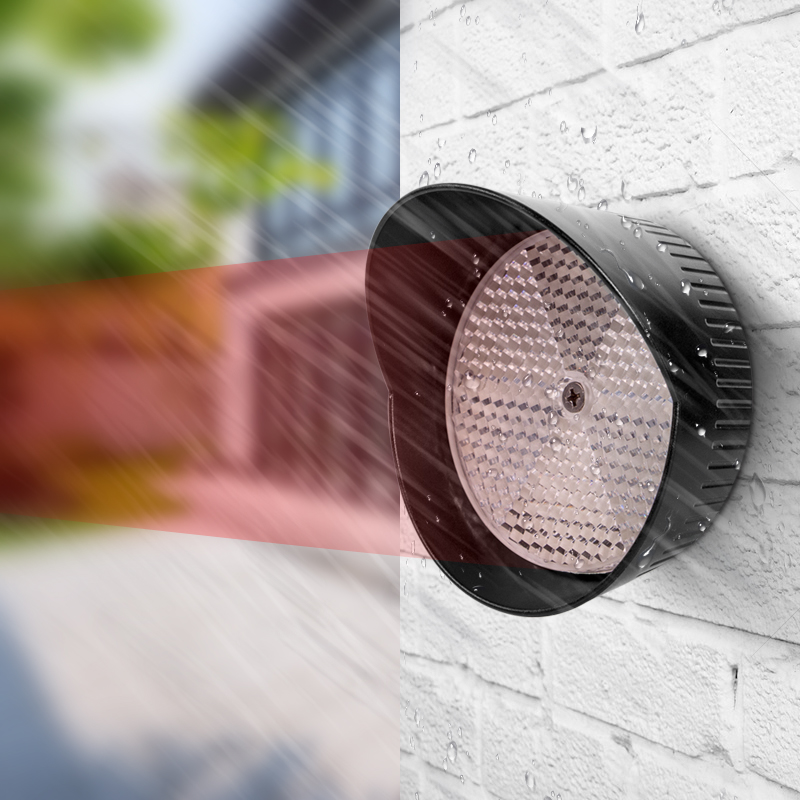

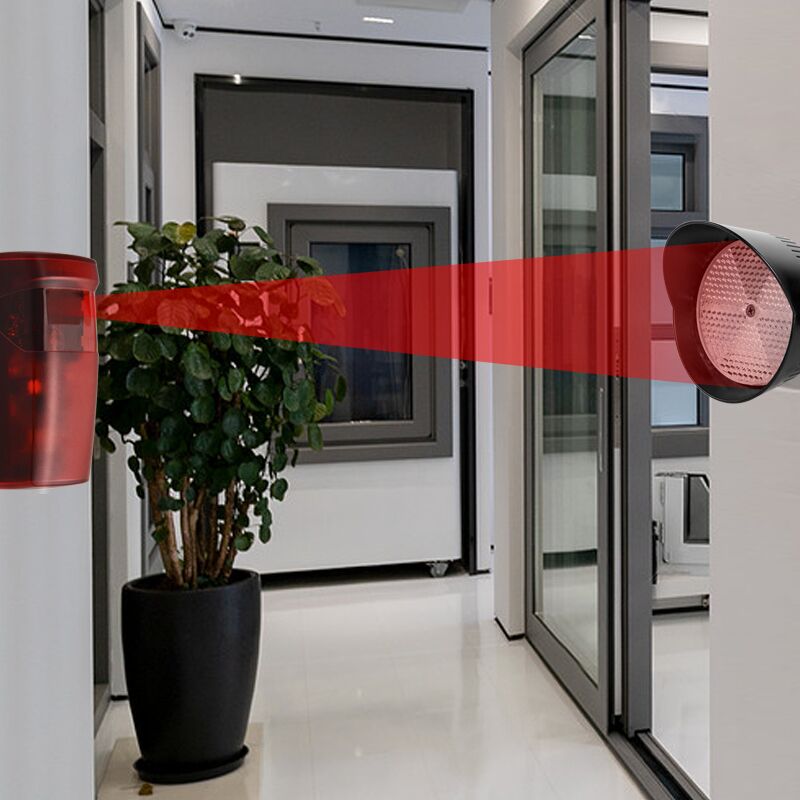

The reflective beam sensor is widely used for parking lots,lifting doors, revolving doors,sliding doors, wall security protection, window and balcony security, warehouse security and other outdoor security sites.

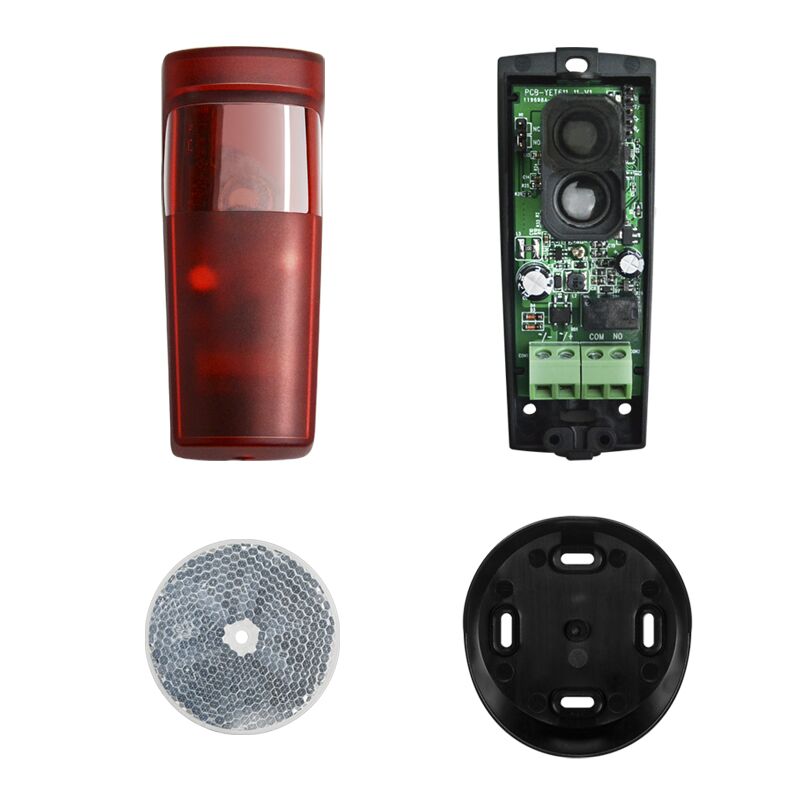

Reflective Infrared Beam AN900-R10

Product Specifications

Input voltage

AC: 9V~ 24V (Frequency: 45~60Hz, IMax:15mA);

DC:12V~24V, Imax =38mA

Working current

<38mA@12VDC (Relay on)

<38mA@12VDC (Relay off)

Detect distance

<20m      (with Imported Lens)

<12m      (with Domestic Lens)



Reaction time

About 30mS

Light   intensity

5000Lux Max

Transmitting Wave Length

740nm. Visible infrared light

Relay Load   parameter

AC 0.5A/120VAC; DC: 1A/30VDC

Coil parameter

9V DC ( Imax =20mA )

Green LED

Power   on/off;   Flash: weak signal.

Yellow LED

Working status Signal (On/Off: the working signal is valid/invalid.)

Working temperature

-20 ~ +70


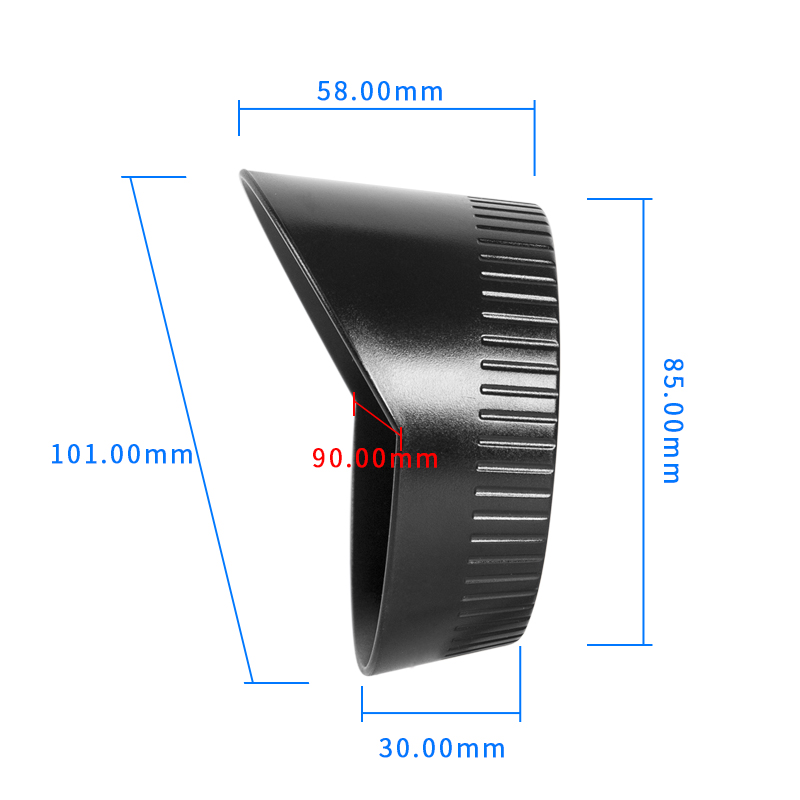

100 x 40 x 35mm (L*W*H)


About 60g

Product Installation

(1)Please install and test the product within Max detect range.

(2)Install the reflector in a suitable position and the reflector should face the sensor.

(3)Adjust the position of sensor according to the reflector, and point the sensor to the center    of the reflector.

In the initial installation and debugging, fixed the sensor firstly, the reflector is aligned with the sensor, and then move the reflector from near to far to the desired position.

(4)Do not power up the sensor until all electrical wiring of the sensor is complete.

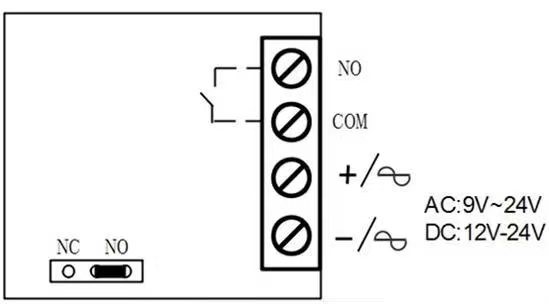

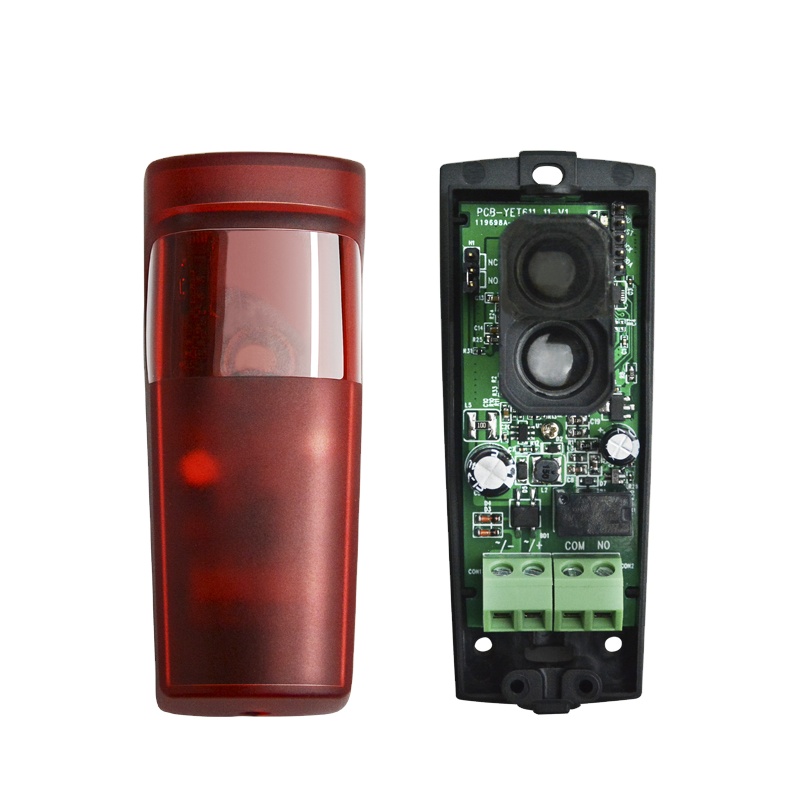

Product Electrical Interface

Reflective Infrared Beam AN900-R10
