Product Application

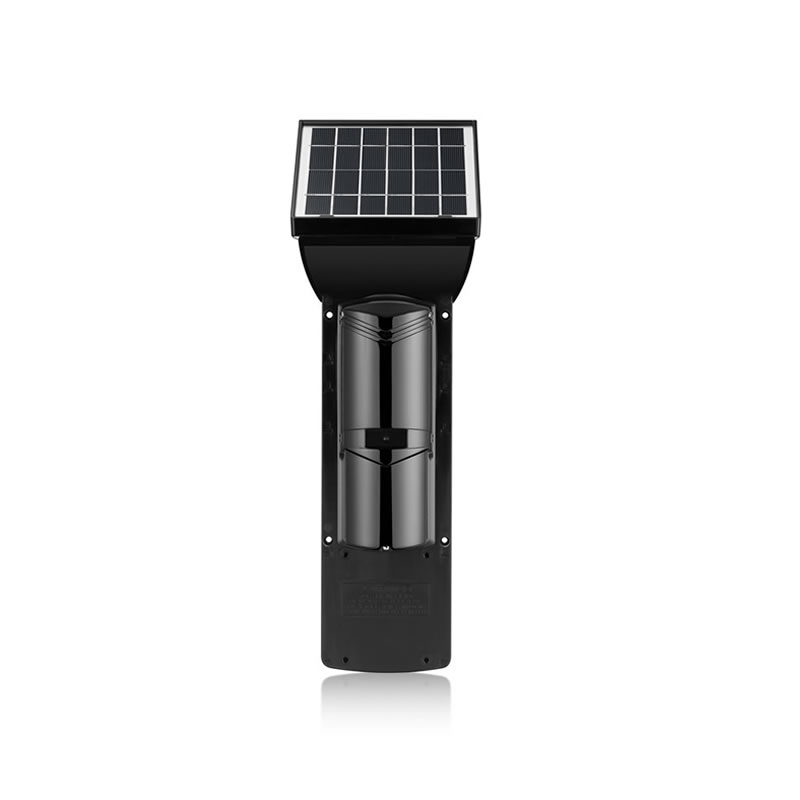

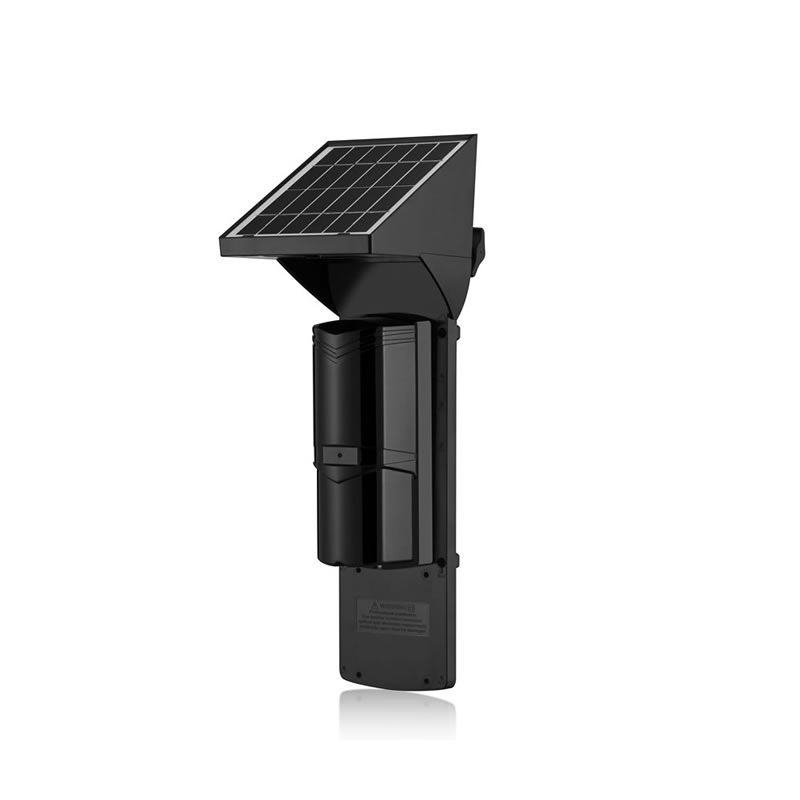

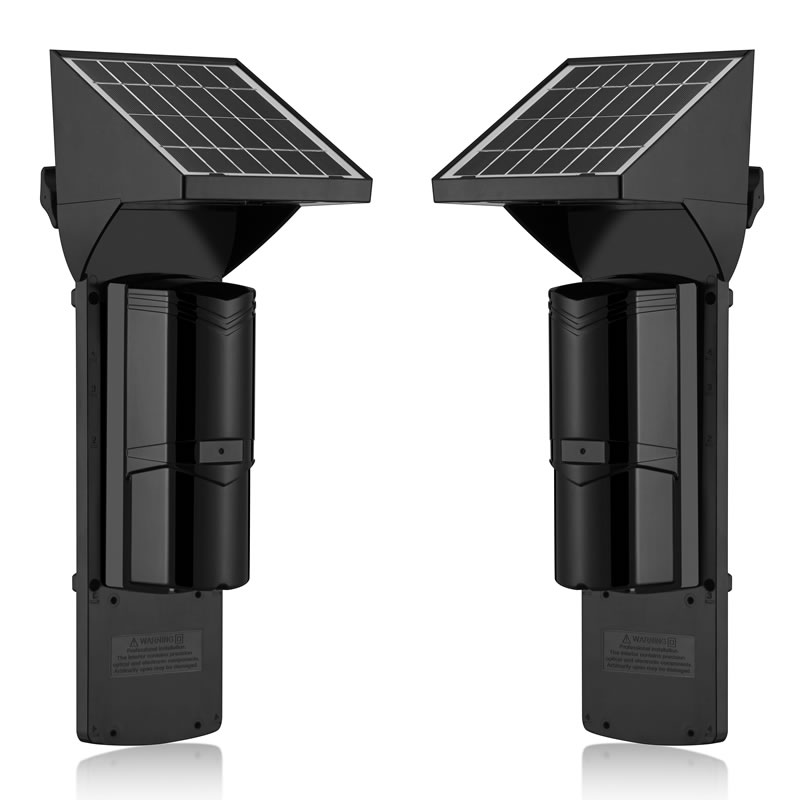

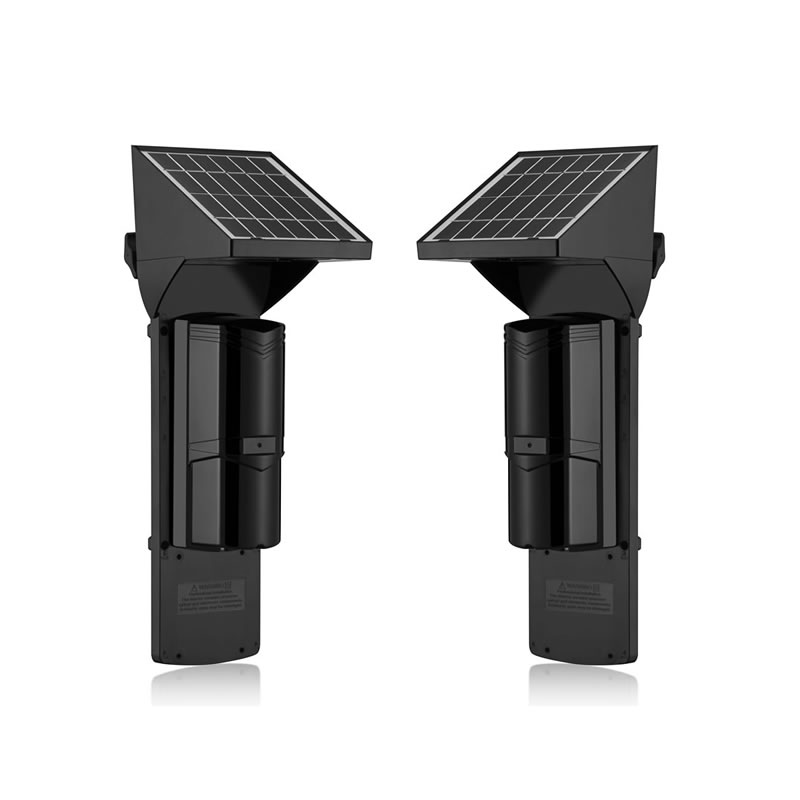

Solar-powered wireless beam sensor is a new environment-friendly product.
It uses solar panel to charge & work, and use wireless signal transmission to receive the alarm signal.Which is easy for installation without cable connection.
Once all beams are interrupted in the same time, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves.
Product Specifications
| Model | CST-A30 | CST-A60 | CST-A80 | CST-A100 | |
| Detecting Range | 30m | 60m | 80m | 100m | |
| Beams Detecting Method | 2 beams are interrupted in the same time | ||||
| Detection Ranges | 100m Max. Outdoor | ||||
| Wireless Tranmission Distance | 500m (distance from detector to alarm control panel) | ||||
| Sensing Speed | 100ms | ||||
| Solar Panel | Voltage | ≥4V DC <12V DC | |||
| Current | >3mA | ||||

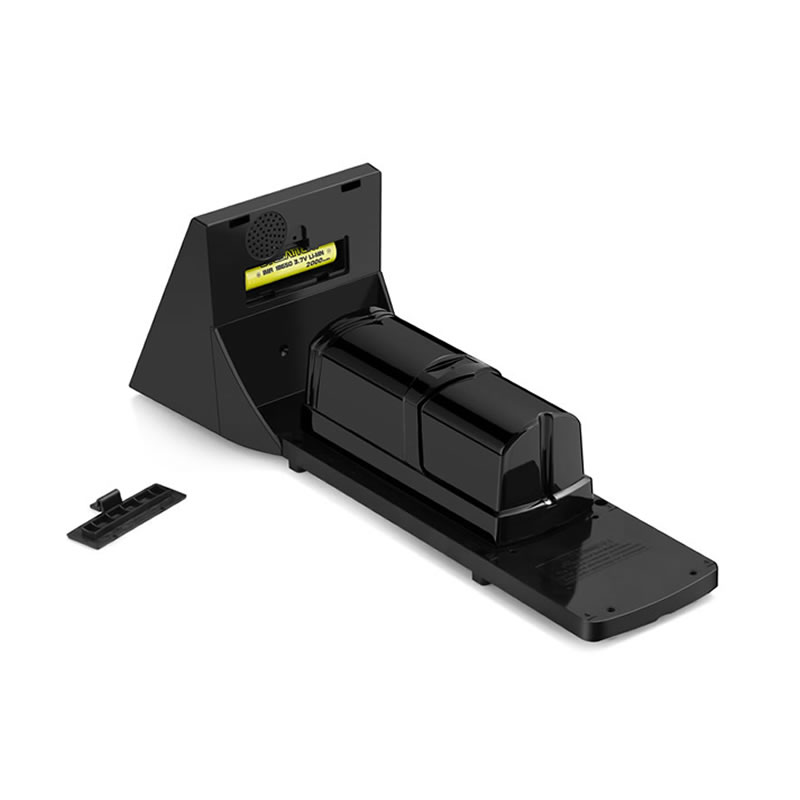

| Built-in Battery | TX | Voltage:3.7V~4.1V/DC 18650 * 1pc. Rated capacity: 2,000mAH | |||
| RX | Voltage:3.7V~4.1V/DC 18650 * 1pc. Rated capacity: 2,000mAH | ||||
| Working Status | Voltage | 3.70V / DC | |||
| TX Current | 7.30mA | ||||
| RX Current | 4.60mA | ||||
| Alarm Status | Voltage | DC 3.70V | |||
| TX Current | 7.30mA | ||||
| RX Current | 53.40mA ± 0.3mA | ||||
| Beams Frequency | 4 channel options | ||||
| Wireless Frequency | 315MHz or 433MHz ASK/OOK | ||||
| Maximum Alarm Times in 24 hours | ≤55 times/ Day | ||||
| Water-proof Level | IP65 | ||||
| Anti Tamper | Normally Closed ,open when the housing is taken off | ||||
| Adjustment Angle | Horizontal 180°（±90°），Vertical90°（±10°） | ||||
| Operating Temperature | 25~ 65℃ | ||||
| Installation Method | indoor/outdoor,wall mounted/pole mounted | ||||
| Dimension | 40.5*14*13cm | ||||
Features:
1. Large-scale solar power supply, fast charging
2. Low power consumption, lasts about 30 days
3. 4 channel frequency, anti-interference,solves the problem of mutual interference
4. Intelligent Digital signal display for easily alignment, save the time & Labor costs.
5. Beam sensor sensitivity are adjustable.
6. Demist function is available to added with the heater
7. MCU circuit design made it signal stability and accuracy enhanced
8. Alignment angle:±90°horizontally,±10°vertically
9. Waterproof grade: IP65
10. Pet immunity, insect prevention, current limiting protection.
11. Anti-tamper function.
12. Multiple range optional 30m, 60m, 80m,100m.

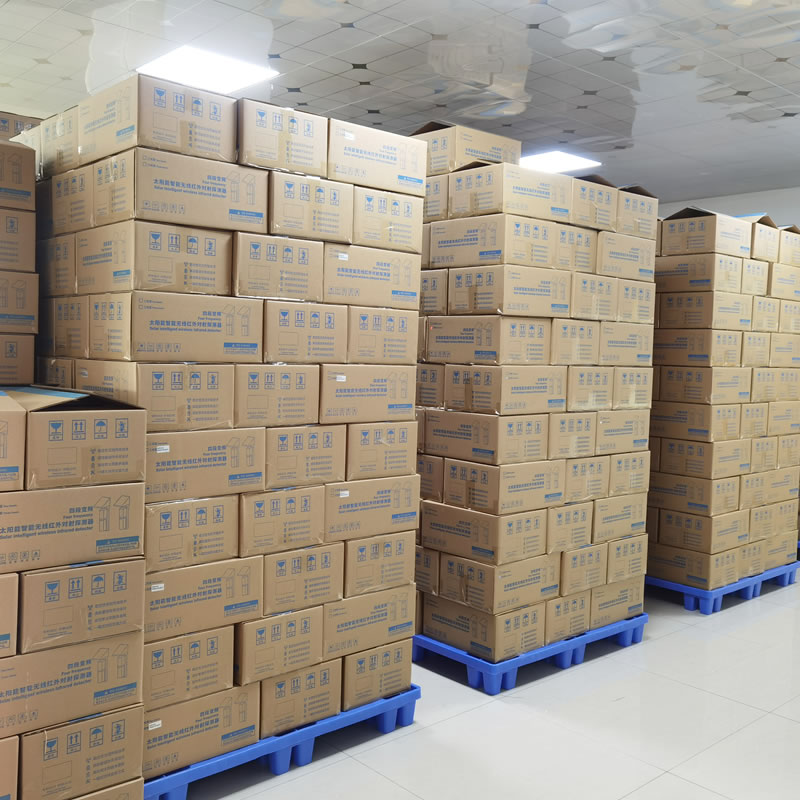

Factory & Exhibition
FAQ
1.Could I order one piece for sample to test the quality?
Yes, sample is available
2.What should I know before ordering?
Please let me know the frequency (433.92 is the most common frequency), code (fixed code EV1527, rolling code HCS301 or
duplicator). And please also let me know the quantity, our MOQ is 100pcs.
3.Are you a manufacturer?
Yes, we have our own factory, production line, SMT&Plug-in,automatically screw driver machine etc and R&D department.
4.Can I visit your factory?
Yes,welcome.Our address: Room 408, Building 2 of Shente Bian Hi-Tech Park, Buji Town, 518112 Longgang District,Shenzhen, P.R China
5.What about your delivery time?
For samples, 3~5 working days, for bulk order, 7~20 working days.
6.Do you accept OEM order?
Yes. We have customized a lot of items for our clients.
7.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.
8.When you can reply me when you receive our inquiry?
Your inquiry will be replied within 12 hours.
